HOT HEADER FEA ANALYSIS

Scope

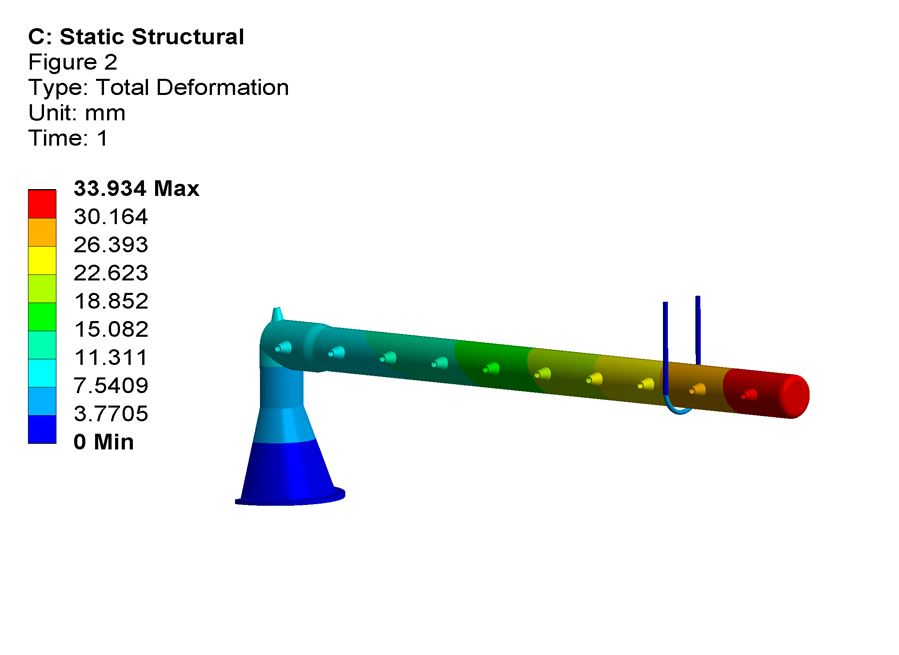

Abyssal Technologies scope was to perform thermal-structural coupled analysis of a hot header. In this project, steady state thermal analysis was carried out followed by a coupled thermal-static structural analysis. The temperatures from steady-state thermal analysis were assigned as input along with other structural boundary conditions in the coupled thermal-structural analysis.
